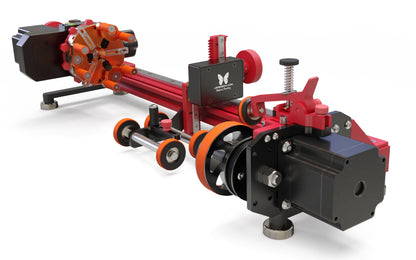

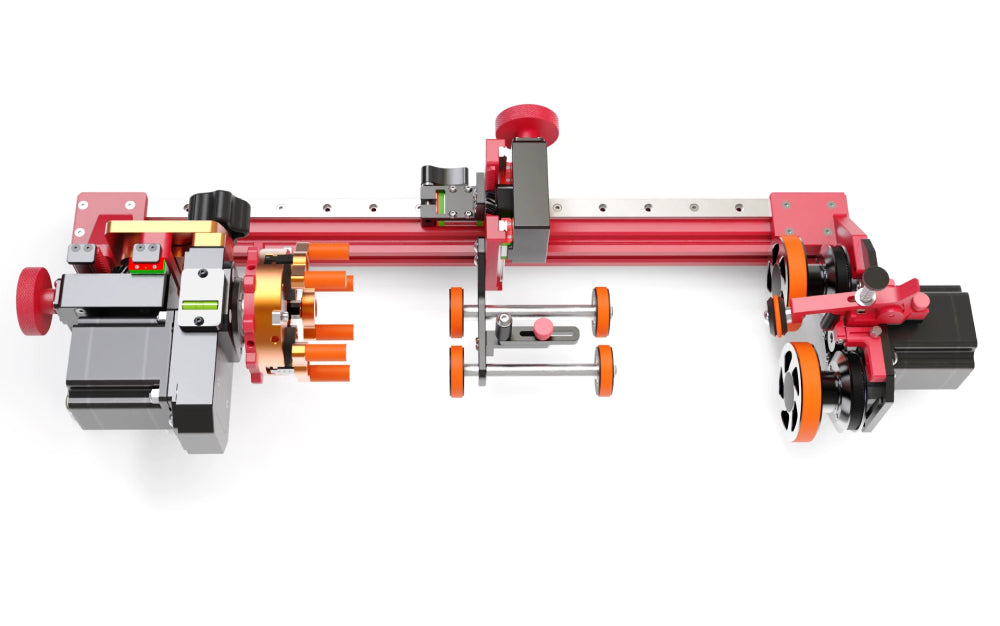

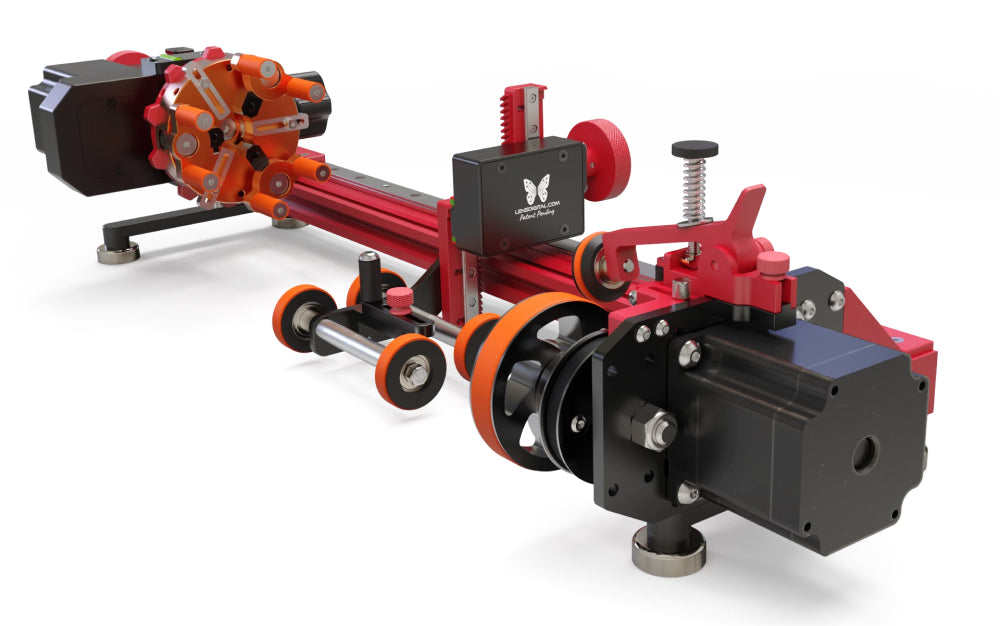

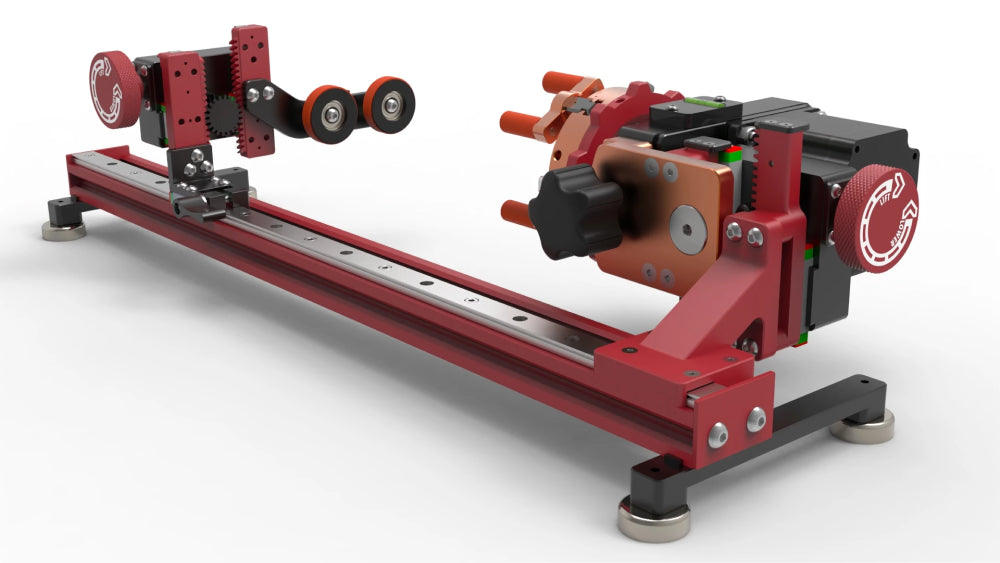

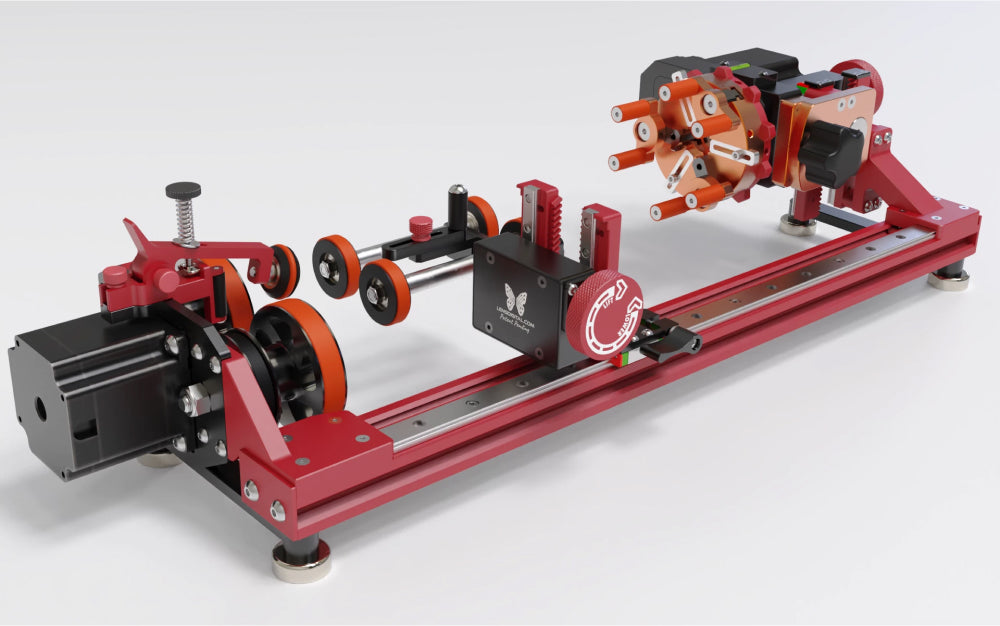

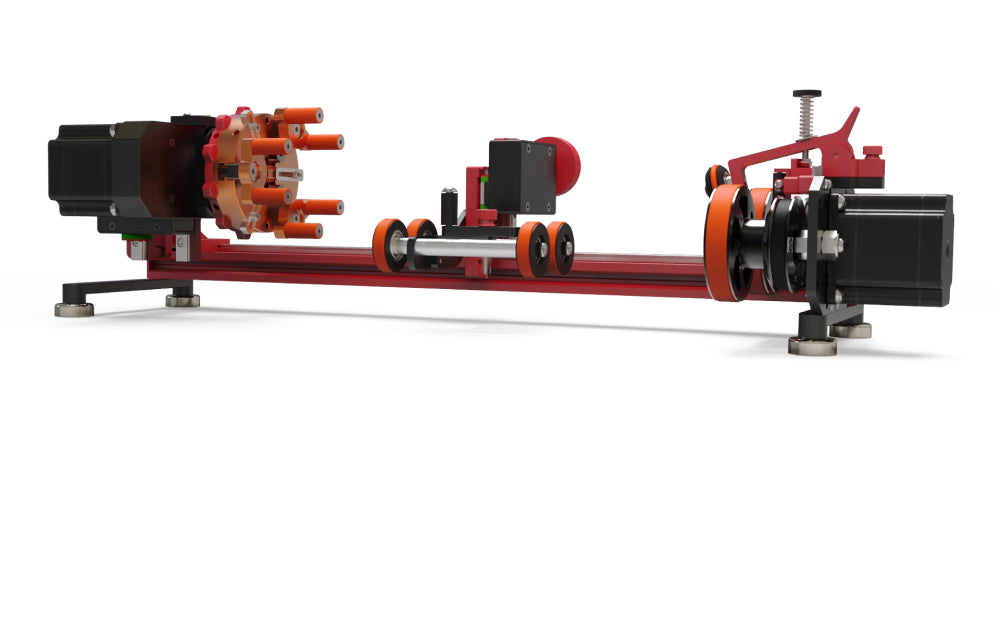

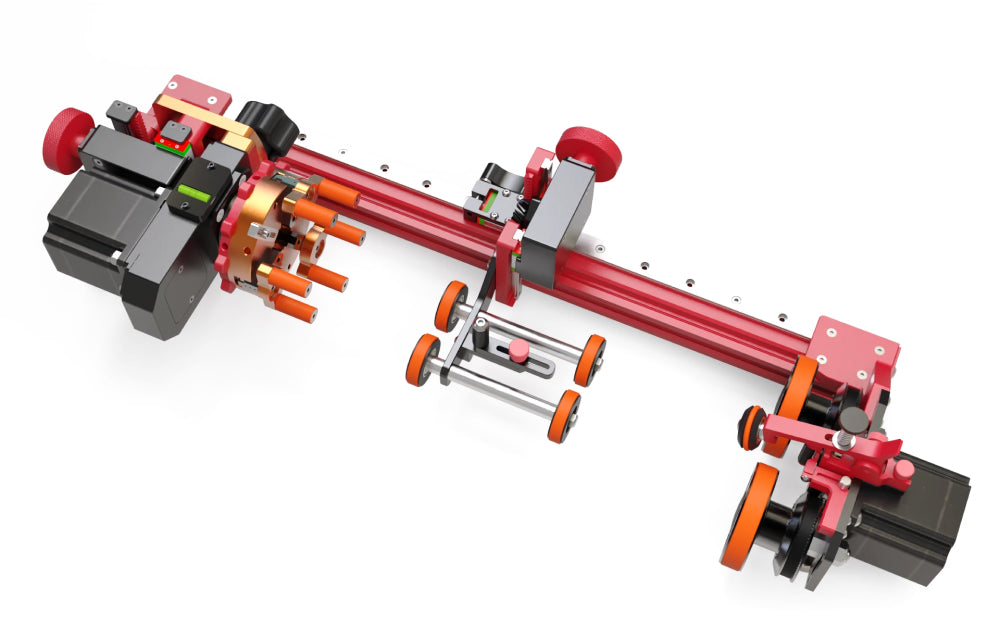

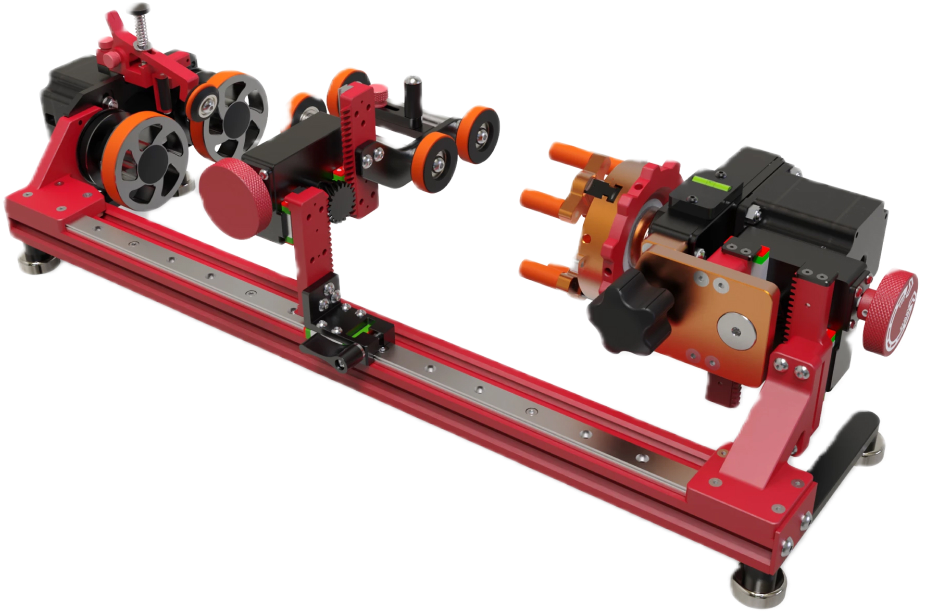

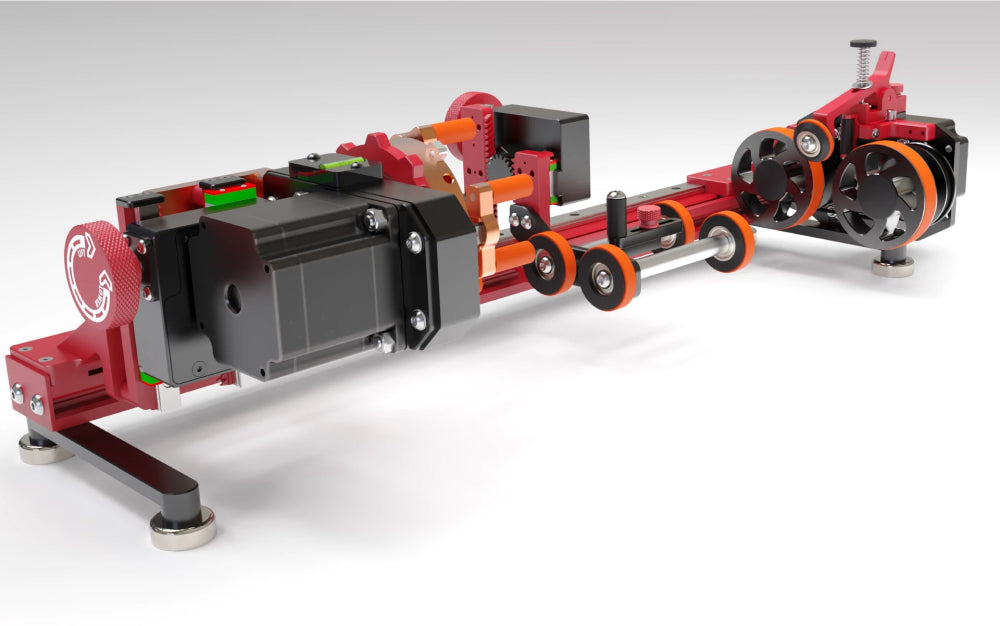

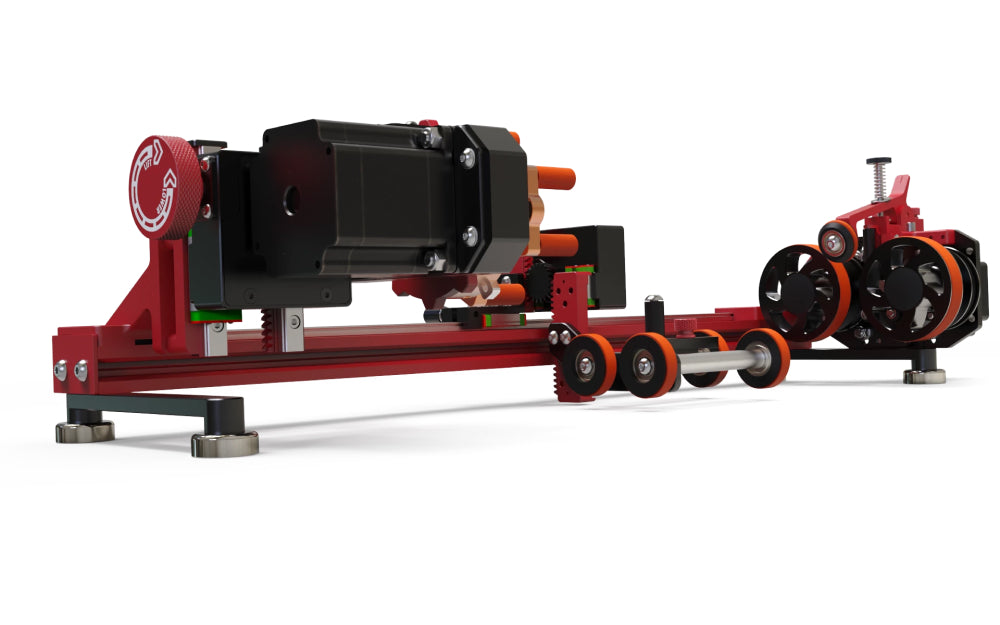

PiBurn OMNI 2: The Most Advanced Laser Rotary

Upgrades in the OMNI 2 include:

Roller Rotary Functionality Upgrades (the PiBurn V side):

• Magnetic feet now included — previously a $75 upgrade, these convenient feet provide added versatility without any extra cost!

• Low profile self-locking telescoping back wheel support for enhanced stability and support of even the heaviest items.

• Repositionable footboard to extend the range of movement using extra mounting holes.

• Linear rail guide & integrated brake/stopper for smoother movement (essentially eliminating anything getting loose or wobbly and preventing front-to-back alignment issues) and quick and easy carriage fixation.

• Wide tires on back wheels replacing O-rings and preventing slipping—say goodbye to lost or shifted O-rings!

• Smaller platform design allows for further back support movement and increased travel.

• Compact head unit design with centered motor and improved belt drive system, eliminating slippage.

• Increased 4.5x gear reduction (3.6x for Thunder motor) for enhanced engraving resolution and movement for precision  on your most delicate and intricate designs.

• One-piece silicone tires on main motorized wheels increases surface area and friction, preventing slipping and losing O-rings.

• Reimagined wheel design with integrated bearings, ensuring they stay perfectly parallel to the headboard.

• Integrated pulley in wheels guarantees no loosening over time.

• Improved clamp for ergonomic design and ease of use.

• Versatile headboard attachment allows mirrored configurations with a special bracket.

• Easily swappable headboard with no need for alignment adjustments thanks to the linear rail.

Chuck Rotary Functionality Upgrades (the PiBurn Grip 2 side):

• Magnetic feet now included — previously a $75 upgrade, these convenient feet provide added versatility without any extra cost!

• Redesigned Grip support mechanism and gear reduction with a new belt gear reduction of up to 3.75x, enhancing engraving resolution and rotational torque. Never need to change DIP switches even with older laser machines.

• Self-locking telescoping lift for smooth height adjustments with just a turn of a knob—no more fiddling with thumb screws – adjust the height of the Grip on the fly!  (First and only Chuck rotary to do this)

• Low profile design that accommodates larger items up to 11.5” in diameter, making it perfect for objects like a Yeti Bucket (with additional jaw extenders, sold separately).

• Up to 15-degree swivel control with an easy-to-use ergonomic knob that locks securely in place.

• Built-in level and center line indicator to ensure perfect alignment every time.

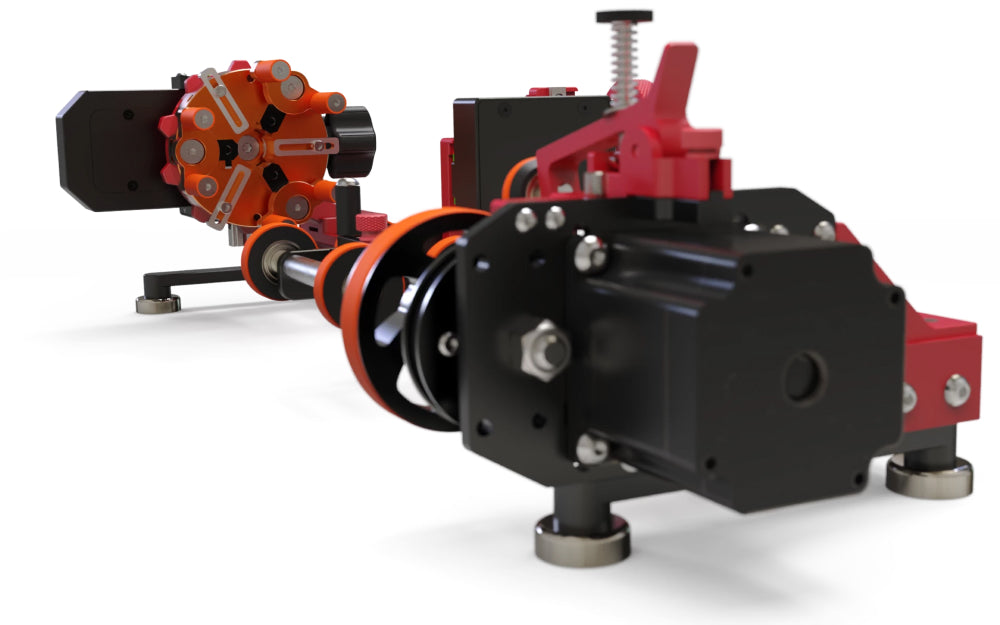

• Patent-pending Hexa-Jaw system that grips heavier objects securely, enabling faster clamping from inside or outside.

• Improved precision and reduction in wobble during rotation for more accurate engravings.

• Quick-swap shaft coupling mechanism using a single screw, allowing fast changes to pre-installed jaw configurations—ideal for dog bowls or tumblers!

• Enhanced back support wheel system featuring a low-profile self-locking mechanism and a wider range of motion.

• Linear guide system ensuring no need for alignment adjustments with back wheels.

• Versatile installation options, including removal from the lift mechanism for use on Galvo brackets (sold separately) or in a turret configuration for multi-object engraving.
